Common Mode Inductor vs Differential Mode Inductor: Key Differences & Applications

2026 02/09

As an engineer with many years of experience in the electronic components industry and a representative of JIU LI, I am often asked by overseas clients: "What are the differences between common mode inductors and differential mode inductors? Which one do my project require?" Today, I will explain these two core inductors in plain and understandable language, highlighting their key differences, and combining JIU LI's product development and application experience to help you determine which inductor better meets your EMI filtering or current limiting requirements.

What exactly are common mode inductors and differential mode inductors? (JIU LI's simple interpretation)

First of all, we need to establish a basic understanding - common-mode inductors (CM inductors) and differential-mode inductors (DM inductors) are both key components for the stability of electronic circuits, but they address completely different issues. At JIU LI, we produce both of these product series simultaneously (common-mode inductors are the JL-CM series, and differential-mode inductors are the JL-DM series), and have helped hundreds of customers select the appropriate inductor products for their application scenarios (from power supplies to LED drivers).

Jiu Li's Plain Explanation of Common Mode Inductors (CMI)

Common mode inductor, also known as common mode choke (Common Mode Choke), is mainly used to filter common mode noise - that is, the noise that flows in the same direction simultaneously in its two symmetrical windings. It is the core of EMI filtering in most electronic devices, especially suitable for power line scenarios. JIU LI's common mode inductor adopts double symmetrical windings and high-quality ferrite or toroidal cores, minimizing noise and is highly suitable for application scenarios that need to meet EMI compliance requirements such as CE and FCC.

Jiu Li's Plain Explanation of Differential Mode Inductance (DMI)

The differential-mode inductor is used to filter differential-mode noise - that is, noise that flows in opposite directions through its single winding. Unlike the common-mode inductor, it has only one winding and is mainly used for current limiting, signal filtering, and stabilizing the current in the circuit. JIU LI's differential-mode inductor is designed with high reliability as its core, emphasizing low power consumption and stable performance over a wide frequency range.

The core differences between common-mode inductors and differential-mode inductors (Jiu Li comparison table)

To make it easier for everyone to understand, the following is a detailed comparison table based on the product specifications and application data of Jiu Li - this is also the core reference we share with our customers on a daily basis, helping them make informed decisions quickly:

Aspect	Common Mode Inductor	Differential Mode Inductor
Working Principle	Filters common mode noise (same-direction current in both windings)	Filters differential mode noise (opposite-direction current in single winding)
Winding Design	Dual symmetric windings (equal turns, opposite direction)	Single winding (no symmetry required)
Core Type	Ferrite core, toroidal core (optimal for noise suppression)	Ferrite core, iron core (optimal for current limiting)
Primary Use	EMI filtering for power lines, power supplies, inverters (EMI common mode inductor)	Current limiting, signal filtering, LED drivers, MCUs
JIU LI Main Series	JL-CM Series (includes SMD, through hole, toroidal types)	JL-DM Series (includes low loss, high current types)

How to determine which inductor is needed for your application scenario?

One of the most frequently asked questions by customers is: "Which one should I choose?" The answer entirely depends on your project goals. At JIU LI, we use a simple principle to guide customers in their choice:

When to choose common-mode inductors? (EMI filtering scenario for power supplies/inverters)

If your project involves power lines, power supplies, electric vehicle chargers or inverters, and requires suppression of EMI noise to meet industry standards, then common mode inductors are your best choice. For example, if you are designing a switching power supply and are troubled by EMI interference, the EMI common mode inductors (JL-CM-F07 series) from Jiu Li can effectively filter common mode noise and help you pass CE/FCC certification. We usually recommend common mode chokes for EMI filters to customers because they are a cost-effective and reliable solution.

When to choose differential mode inductors? (For LED drivers / in current-limiting scenarios of microcontrollers)

If your goal is to restrict current flow, stabilize signals, or protect sensitive components (such as microcontrollers, LED drivers) from the impact of current spikes, then differential-mode inductors are a more suitable choice. For example, in the design of LED drivers, the JIU LI's JL-DM-S01 series differential-mode inductors can limit current, prevent LED burnout, and ensure stable brightness. They are also suitable for circuit scenarios where a small amount of differential-mode noise needs to be filtered without affecting the main current flow.

Can two types of inductors be used simultaneously in a project? (Answer by Jiu Li)

Sure! In fact, many high-performance electronic devices - such as industrial power supplies and electric vehicle chargers - use both common-mode inductors and differential-mode inductors simultaneously to achieve optimal circuit stability. At Jiu Li, we often design integrated EMI filtering solutions for our customers, combining the JL-CM series common-mode inductors and the JL-DM series differential-mode inductors to provide customers with a one-stop filtering and current-limiting solution.

Typical circuit design of common-mode + differential-mode inductors

One of the common designs we recommend is as follows: Place a common-mode inductor near the power input terminal (to filter external EMI noise), and place a differential-mode inductor downstream (to limit current and filter internal differential-mode noise). This combination ensures that your circuit is protected from external interference while also preventing the impact of internal current spikes - this is an effective solution that has been verified through extensive testing of customer projects by us.

Jiu Li's integrated EMI filtering solution (combined common mode + differential mode)

For customers who wish to simplify the design process, JIU LI offers integrated EMI filtering solutions, including common-mode and differential-mode inductors. These pre-assembled solutions are tailored for specific application scenarios (such as power supplies, electric vehicle chargers), and have undergone industry-standard testing, saving you time and costs in research and development as well as testing.

Jiu Li Common Mode + Differential Mode Inductor Series: Tailored for Your Circuit

At Jiu Li, we understand that each project is unique. Therefore, we offer a full range of common-mode and differential-mode inductors, and can customize the specifications according to your specific needs. Whether you need a large current common-mode inductor for an electric vehicle charger, or a small differential-mode inductor for a wearable device, we can design and manufacture it for you.

High-quality common-mode inductor suitable for EMI filtering

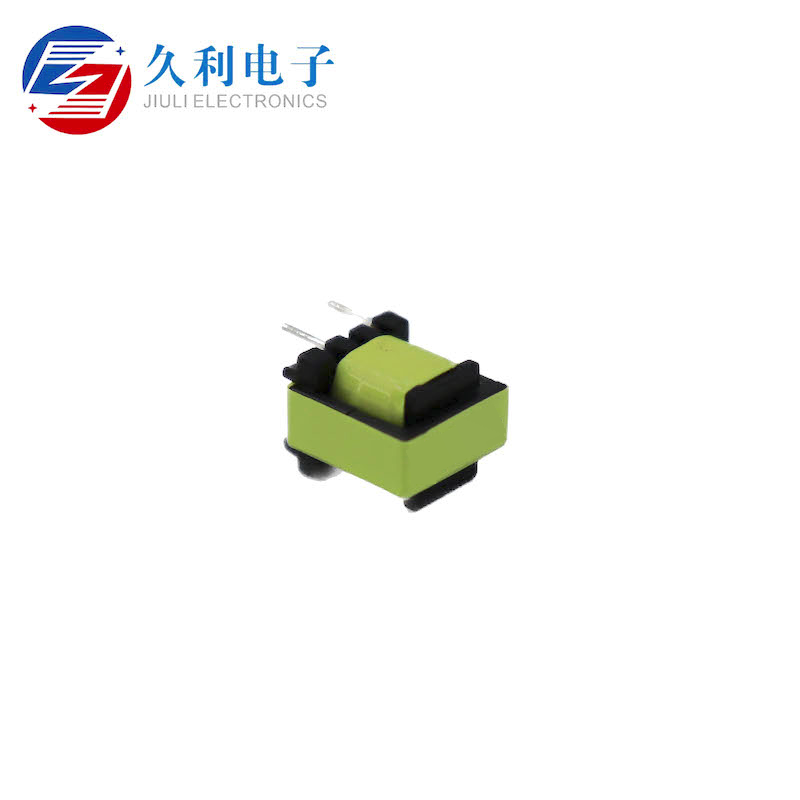

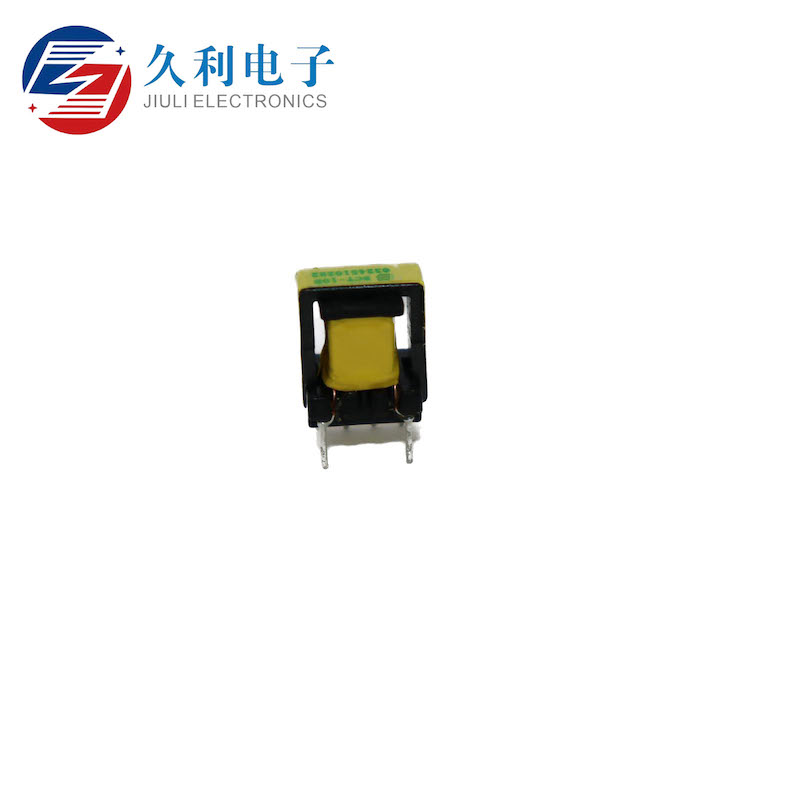

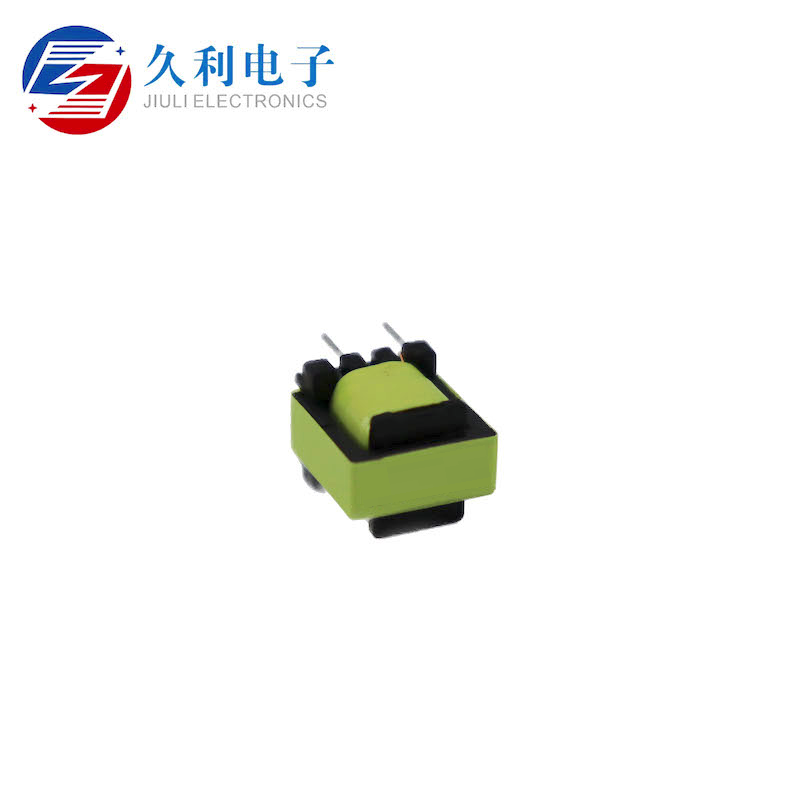

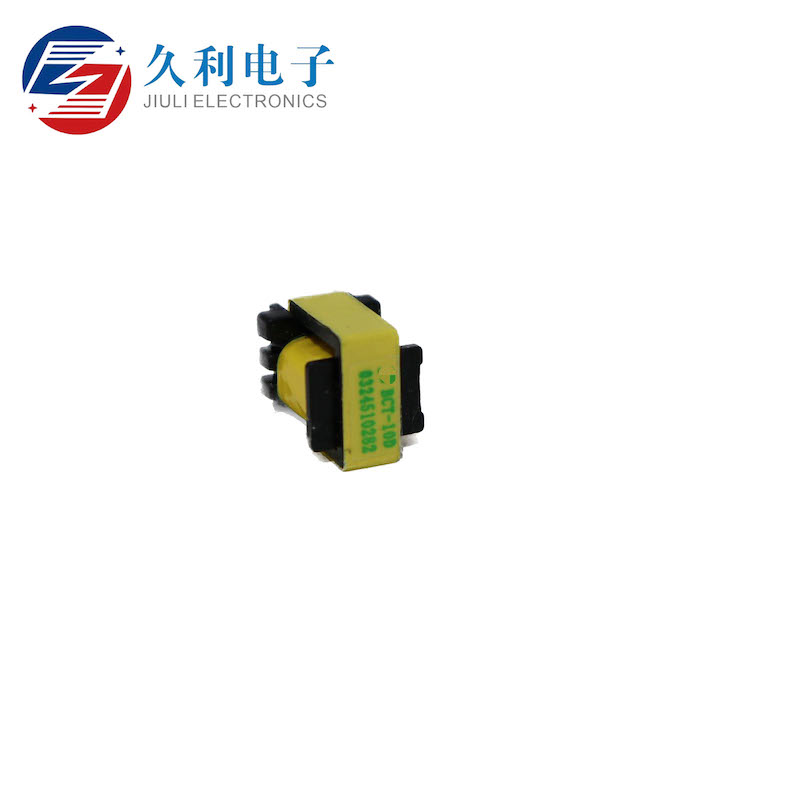

Our JL-CM series of common-mode inductors include surface mount, through-hole, and toroidal types. The inductance value ranges from 1uH to 1mH, and the current rating ranges from 0.5A to 30A. All common-mode inductors have passed RoHS/UL certification and are made with high-quality ferrite or toroidal cores to achieve the maximum noise suppression effect. We also provide custom winding designs for customers with special EMI filtering requirements.

High-reliability differential-mode inductor suitable for current limiting

Our JL-DM series differential inductors are designed with low power consumption and high reliability as the core. The inductance value ranges from 1uH to 500uH, and the current rating ranges from 0.5A to 20A. They are highly suitable for LED drivers, microcontrollers, and other sensitive electronic devices, and can be customized according to the temperature and voltage requirements of your project.

If you are still unsure which inductor is suitable for your project, please feel free to contact the engineering team of JIU LI. We will provide you with personalized advice, free samples and customized solutions to help you successfully complete the project.
