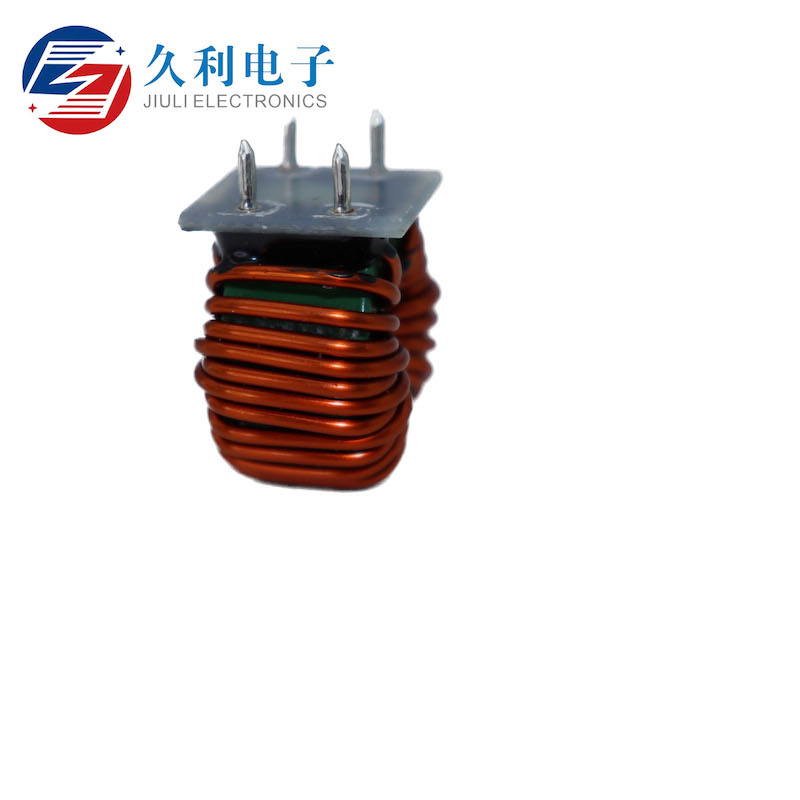

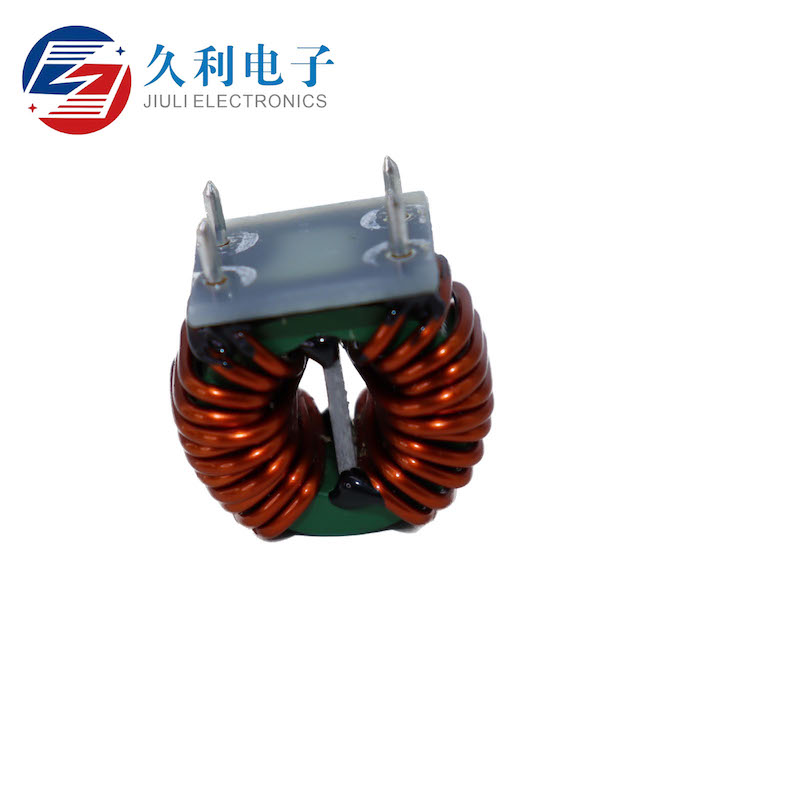

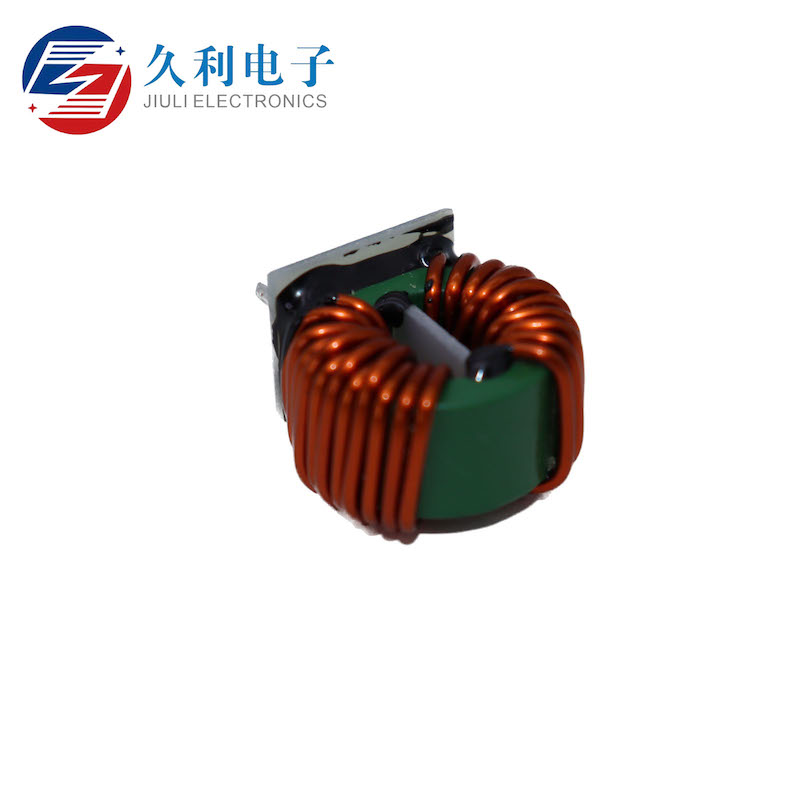

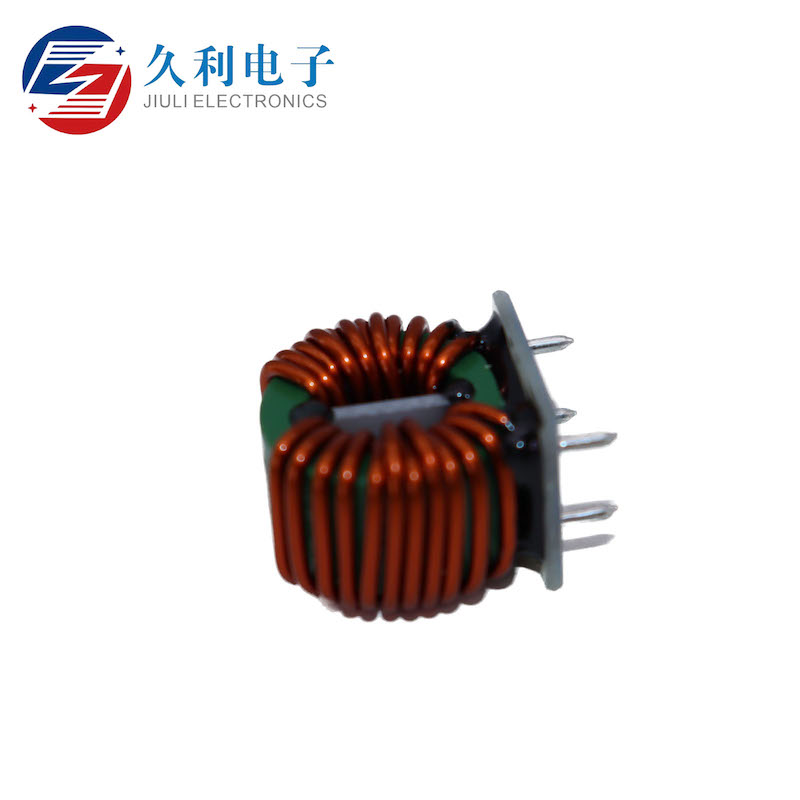

I. Product Overview
Common mode inductor (also known as common mode choke) is a "little expert" specifically designed to resist interference in electronic devices. Its core function is to filter out common-mode electromagnetic interference in the circuit, making the equipment operate more stably. In our common computer switching power supplies, it is often used as a Common mode inductor for switching power supply to block interference signals between the power supply and the power grid. Additionally, in board design, it can also play the role of EMI filtering, preventing electromagnetic waves generated by high-speed signal lines from spreading outward and avoiding interference with other components. It is a key component for improving the electromagnetic compatibility of the equipment.
II. Your perplex
Many engineers often find it difficult to solve the problem of "How to select a common mode inductor". When choosing, they usually fail to balance the inductance, rated current and installation space. Either the filtering effect is poor or the equipment gets overheated. In high-power scenarios, ordinary common mode inductors cannot withstand large currents and their performance deteriorates after a short period of use. Some products lack authoritative certifications. If the equipment is to be exported, it simply cannot pass the compliance testing. The quality of products on the market varies greatly. To select a model suitable for switch power supplies, industrial control and other scenarios, it really requires a lot of effort. Choosing the wrong one will also increase the trouble of later maintenance.
III. Our Solution
In response to these issues, JIULI has specially provided a complete set of common mode inductor selection and product solutions. Whether you are confused about "How to select common mode inductor" or have specific requirements for certain scenarios, we can precisely match the appropriate products based on your equipment conditions, installation space, and compliance requirements. For example, in high-power scenarios where large current support is needed, our High current common mode inductor can balance both anti-interference effects and large current carrying capacity; if it involves exports, the UL certified common mode choke fully complies with international safety and electromagnetic compatibility standards and can smoothly pass various tests. For the specific needs of switching power supplies, we also have customized Common mode inductor for switching power supply, precisely solving the problem of power supply interference.
IV. Advantages of This Product Compared to Other Products
Compared with similar products on the market, JIULI's common mode inductor has obvious advantages. Firstly, its compatibility is very strong. Whether it is a Common mode inductor for switching power supply or a High current common mode inductor, it has optimized the core and winding design, maintaining a stable filtering effect within different frequency ranges and suitable for various usage scenarios. Secondly, it is safe and reliable. Our UL certified common mode choke has undergone strict testing, with better insulation and heat resistance than the industry average, making it more reassuring to use. Finally, its adaptability is precise. It can adjust the size and parameters according to the characteristics of your equipment, without causing performance redundancy or insufficient capacity, and also takes into account low power consumption, helping the equipment improve energy efficiency.
V. Maintenance Guide
Regular maintenance can extend the service life of the common mode inductor. During daily use, clean the dust on the surface of the components and keep the installation environment dry and free of corrosive gases to avoid affecting heat dissipation and insulation. If you notice abnormal heating of the components or severe equipment interference, shut down the machine for inspection first to see if it is caused by overcurrent or saturation of the magnetic core, resulting in performance degradation. When replacing, prefer to select the same specification JIULI products, especially UL certified common mode choke and High current common mode inductor. This can ensure that the equipment performance and compliance are not affected. After replacement, remember to conduct an electromagnetic compatibility test to confirm the normal filtering effect.
VI. Summary
Although the common mode inductor is small in size, it has a significant impact on the stable operation of the equipment. Choosing the right one is essential to fundamentally reduce interference issues. Actually, understanding the core logic of how to select a common mode inductor is not difficult. The key is to choose the right model based on the equipment scenario - for example, for switching power supplies, use the dedicated Common mode inductor for switching power supply, for high-power scenarios, choose High current common mode inductor, and for export equipment, prioritize UL certified common mode choke. JIULI not only provides you with precise selection suggestions but also offers high-quality products, helping you easily solve the problem of common mode interference and making the equipment run more stably.
