Those who work with electronic devices all know that common mode interference is really a headache - the high-frequency noise from switching power supplies and the noise in the power grid can easily cause problems for the equipment: either the data jumps randomly and the signal is unstable, or the EMI certification fails, and rework and rectification take time and money; selection is also a headache - if you choose a large one, it takes up space and wastes costs; if you choose a small one, it can't withstand interference, and repeated trial and error delays mass production. All these troubles can be directly solved with JIU LI Common Mode Choke (CM Choke, Common-mode Inductor), which is specifically designed to address these pain points.

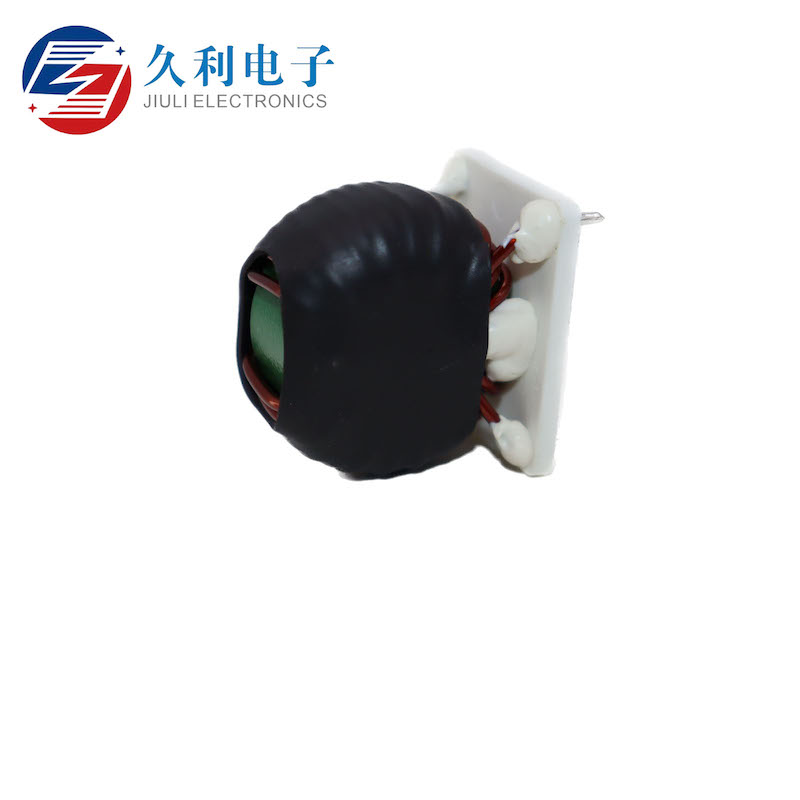

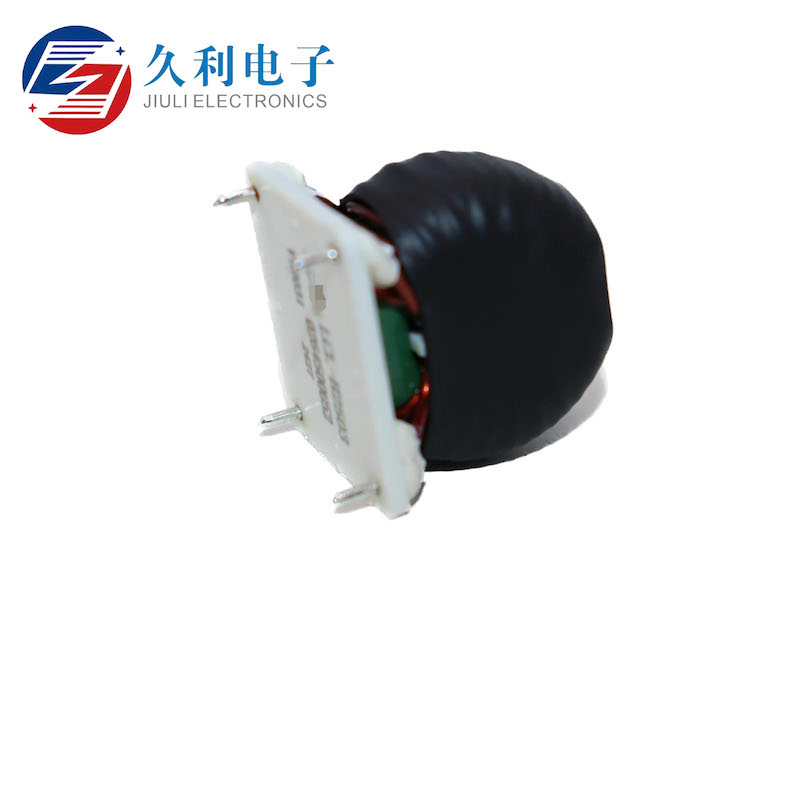

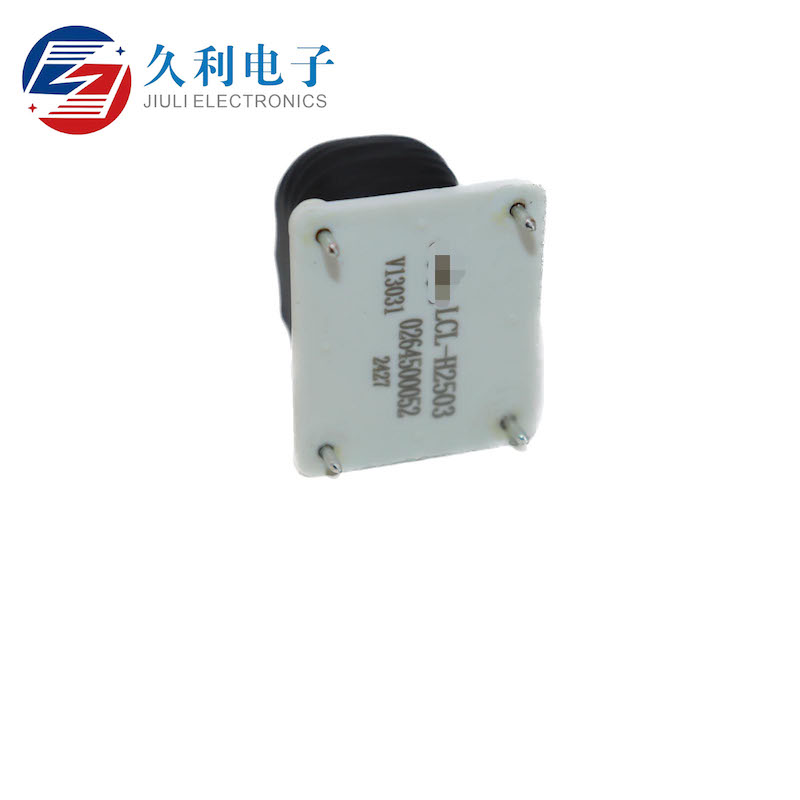

JIU LI Common Mode Choke is a key component for EMI filtering. Simply put, it helps devices "filter out noise". It uses a symmetrical double-wire parallel winding process and is equipped with a high-permeability manganese-zinc ferrite core. It can precisely block two types of interference: one is the intrusion of external power grid noise into the device, and the other is the escape of noise generated by the device itself. It stabilizes the circuit from the root, enabling the device to smoothly pass international EMC certifications such as CE and FCC. Whether it is a switching power supply, USB/Type-C interface, industrial communication equipment, new energy vehicle on-board charger, home adapter, or industrial frequency converter, it can be directly used without repeated debugging, saving a lot of trouble and reducing the risk of mass production.
In practical use, the advantages of JIU LI Common Mode Choke are quite tangible: it will not experience magnetic saturation failure, can remain stable under high current operation, and will not overheat and damage, thus not affecting the lifespan of the equipment. Moreover, it is not bulky and is suitable for small PCB board layouts. Its pins are standardized, so no circuit modification is needed during soldering, making it very easy to handle. Additionally, JIU LI can assist with custom selection and matching of parameters based on the power and operating frequency of your equipment, eliminating the need for guesswork. This ensures correct selection, stable operation, and cost savings.
### Product Features and Usage Tips
Selection tips: Choose the magnetic core based on the operating frequency of the equipment. Select MnZn for frequencies below 1 MHz and NiZn for frequencies above 10 MHz. Leave some margin for the rated current and keep it within 80% of the rated value; otherwise, it is prone to high-temperature attenuation.
2. Installation Note: When welding, keep away from high-frequency components. Arrange the circuits symmetrically. This can reduce parasitic capacitance and achieve the best interference suppression effect.
3. Suggested combination: Form a π-type filter network with X and Y capacitors to filter out noise in different frequency bands together. This is over 30% more effective than using a Common Mode Choke alone.
