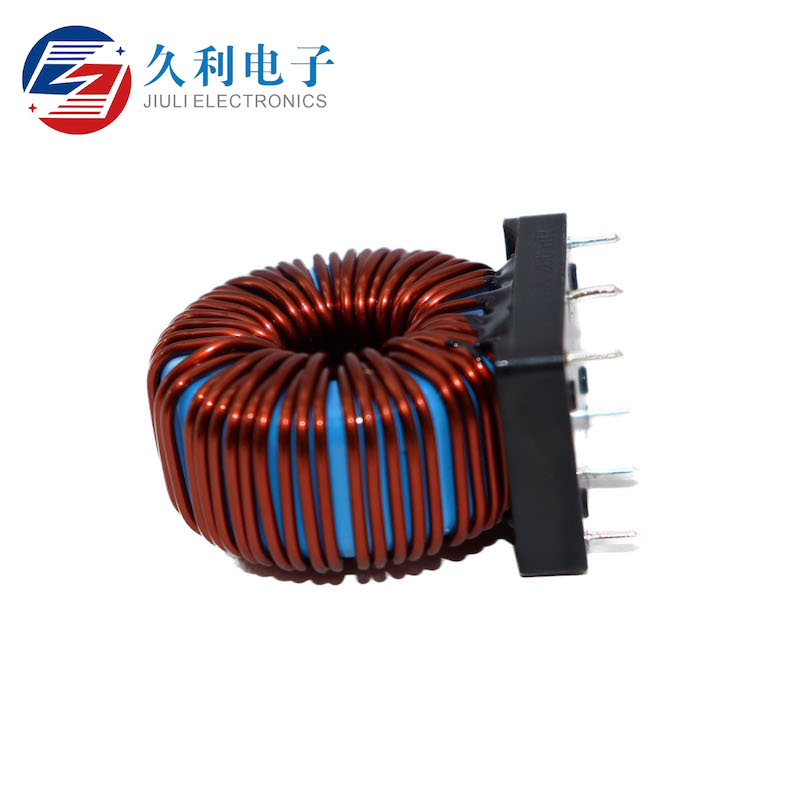

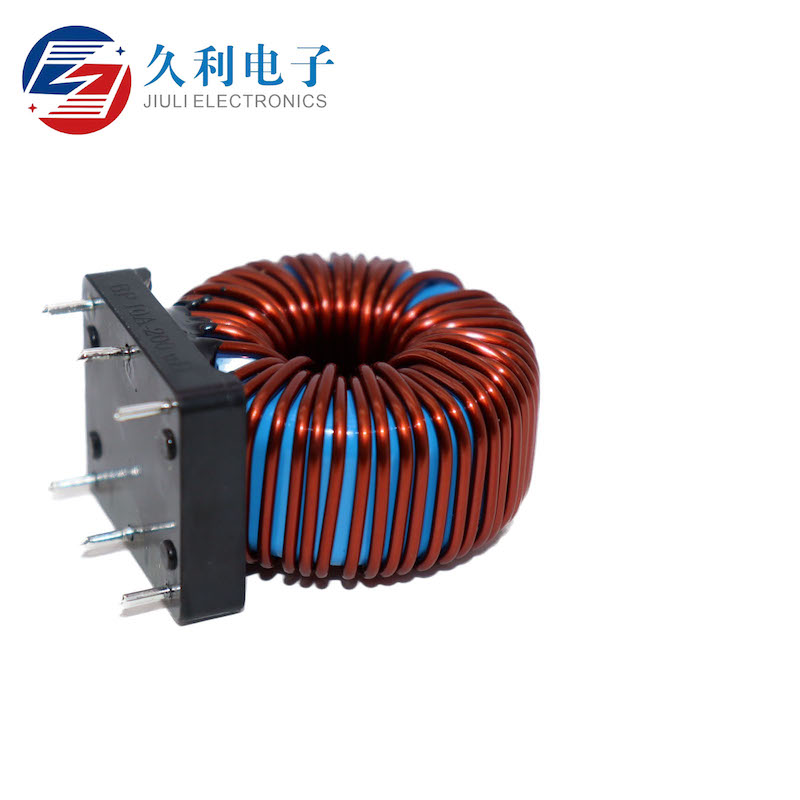

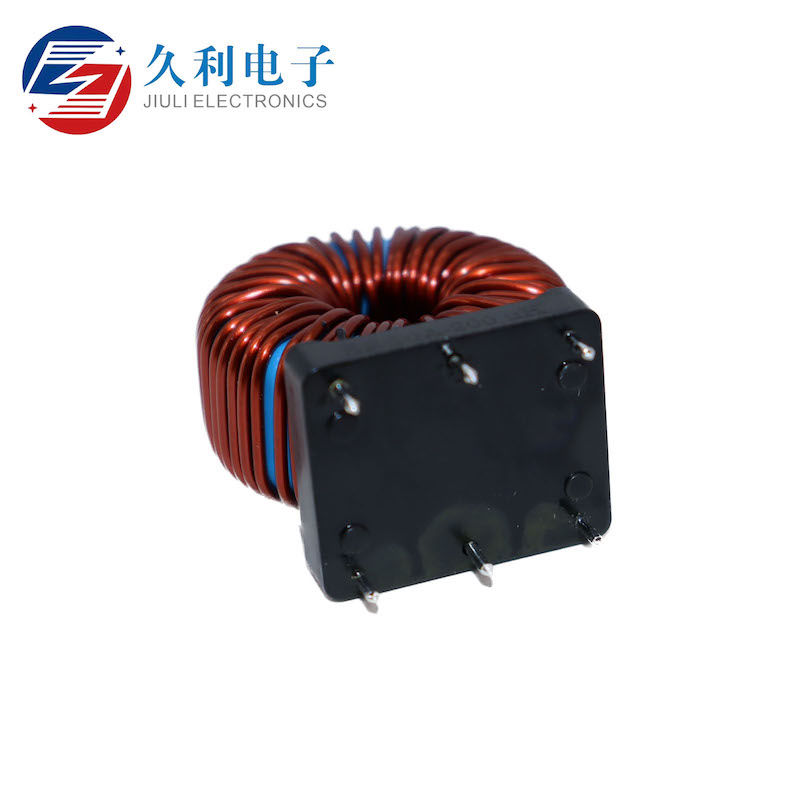

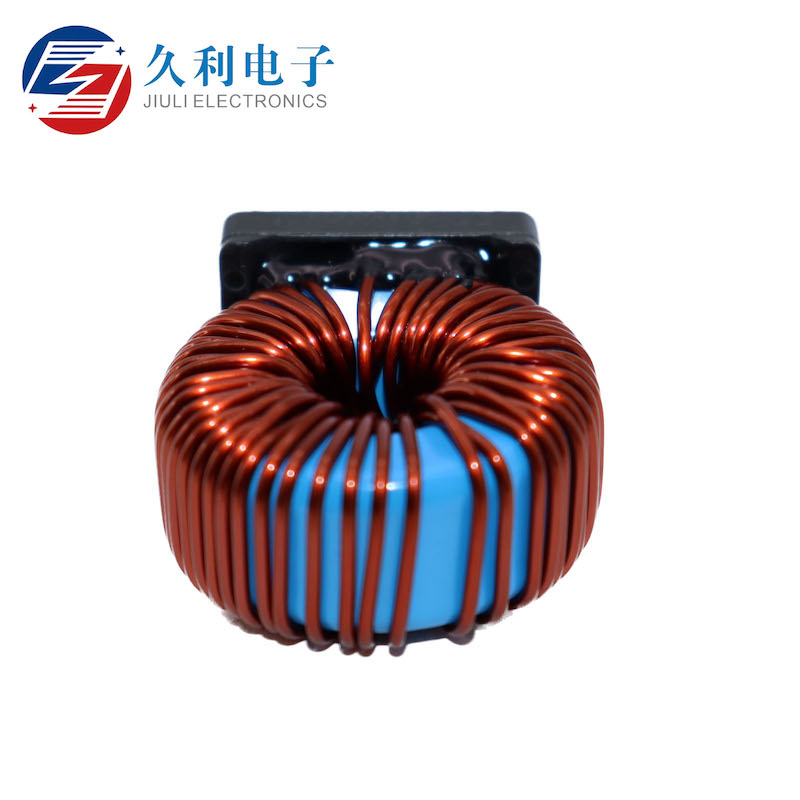

In the field of electronic component applications, Common-mode inductance often faces industry pain points such as insufficient anti-interference capability, excessive temperature rise under high-frequency conditions, and limited adaptability to different transformer scenarios. This directly leads to unstable operation of electronic devices, rising failure rates, and difficulties in meeting product inspection standards. JOEI has深耕 the electronic component field for many years and has specifically launched high-adaptability Common-mode inductance， along with Electronic Transformer， High-frequency Transformer， and Switching Power Supply Transformer to form a complete electronic component supporting system. This product solves the industry pain points from the root by upgrading the core material of the magnetic core and optimizing the winding structure. It not only enhances the anti-interference performance of the equipment but also controls the operating temperature rise， significantly improving the reliability and pass rate of electronic devices， and laying a solid foundation for core protection in power supplies， home appliances， industrial control， and other fields.
As a key component for suppressing common-mode interference, the core value of Common-mode inductance lies in filtering the common-mode noise generated during the operation of electronic devices, ensuring stable signal transmission in the circuit, and being widely applicable in scenarios such as power modules, frequency conversion equipment, and smart home appliances. Its uses are diverse: it can be combined with Switching Power Supply Transformer for switch power supply design to enhance the anti-interference ability of the power supply; it can adapt to the high-frequency working scenarios of High-frequency Transformer to suppress high-frequency noise leakage; it can also serve as an auxiliary protective component for Electronic Transformer to ensure the stable operation of the transformer. For electronic equipment manufacturers, it can avoid product non-compliance due to interference issues and reduce rework costs; for end users, its stable performance can extend the service life of the equipment; for the industrial control field, it can ensure the accuracy of signal transmission of precision instruments and avoid the risk of misoperation.
The most crucial breakthrough of this Common-mode inductance lies in the dual innovations of the magnetic core material and the winding process. By using high-permeability nanocrystalline magnetic cores instead of traditional ordinary ones, the anti-interference capability has been enhanced by more than 40% compared to similar products in the industry. It can effectively filter common-mode noise of different frequencies. The winding section adopts a symmetrical double-wire parallel winding process, reducing leakage inductance and parasitic capacitance. Even under high-frequency conditions, it can maintain stable performance, with the temperature rise controlled within 35°C, which is much lower than the industry average of 50°C. Before, when a certain switch power supply manufacturer used ordinary Common-mode inductance, the temperature rise was often too high, triggering the protection mechanism of the equipment during high-frequency operation. After switching to this JOEI product, the equipment maintained stable temperature rise for 24 hours during continuous operation, and the failure rate was directly reduced by 60%.
To address the issue of poor adaptability, this product adopts a modular design concept and launches a series of products with multiple specifications. It can precisely match different models of Electronic Transformer, High-frequency Transformer and Switching Power Supply Transformer. Whether it is the matching of Switching Power Supply Transformer in small-power household appliances, the high-frequency scenarios of High-frequency Transformer in industrial equipment, or the general-purpose Electronic Transformer for protection needs, corresponding compatible models can be found. Without the need for additional circuit adjustments, it can be directly integrated and installed, significantly shortening the product development cycle of customers and improving production efficiency.
In terms of durability and stability, this product also performs exceptionally well. The casing is made of high-temperature resistant and flame-retardant materials. It has passed high and low temperature cycling tests, functioning normally in an environment ranging from -40℃ to 125℃. It is suitable for the usage requirements of different regions and scenarios. The winding interface adopts precise welding technology, combined with insulation coating treatment, to prevent oxidation and short-circuit risks, and the service life is extended by more than 50% compared to ordinary common-mode inductors. A certain intelligent home appliance enterprise reported that the products equipped with this Common-mode inductance have achieved an improvement in the qualified rate of the anti-interference project in market inspections from 85% to 99%, and the customer complaint rate has significantly decreased.
With a deep understanding of the demands of the electronic components industry, JOEI meticulously refines the product details. According to the individualized needs of different customers, it offers customized inductance values and rated current adjustment services, along with an exclusive Electronic Transformer supporting solution. This further helps customers optimize their circuit designs. The well-established after-sales technical team can also provide installation and commissioning guidance, solve the compatibility issues encountered during integration, and comprehensively ensure the application effect of the products.
Product Features:
With the assistance of high magnetic permeability nano-crystalline magnetic cores, it has strong anti-interference capability and stable temperature rise under high-frequency conditions.
2. Modular and multi-specification design, suitable for various scenarios such as Electronic Transformer, without the need for additional circuit adjustments;
3. High-temperature resistant and flame-retardant material, with precise welding technology, and its service life far exceeds the industry average.
Tips:
It is recommended to select the product with the appropriate inductance value based on the power and operating frequency of the accompanying Transformer, to avoid performance degradation due to improper matching.
2. During installation, it is necessary to ensure that the winding pins are securely welded to prevent poor contact caused by poor soldering. Also, keep away from strong magnetic fields to avoid magnetization of the core.
