How can high-frequency transformers cure the stubborn problem of overheating?



In the upgrade wave of power electronic equipment, the power supply system is constantly facing severe challenges: as power density increases, the accumulated heat generated by traditional transformers during long-term operation often leads to accelerated aging of insulation materials and even short-circuit faults. Engineers often find themselves in a dilemma - if they choose a large-volume cooling solution, they will sacrifice the compactness of the equipment; if they use conventional small components, they will have to bear the risk of reduced system stability.

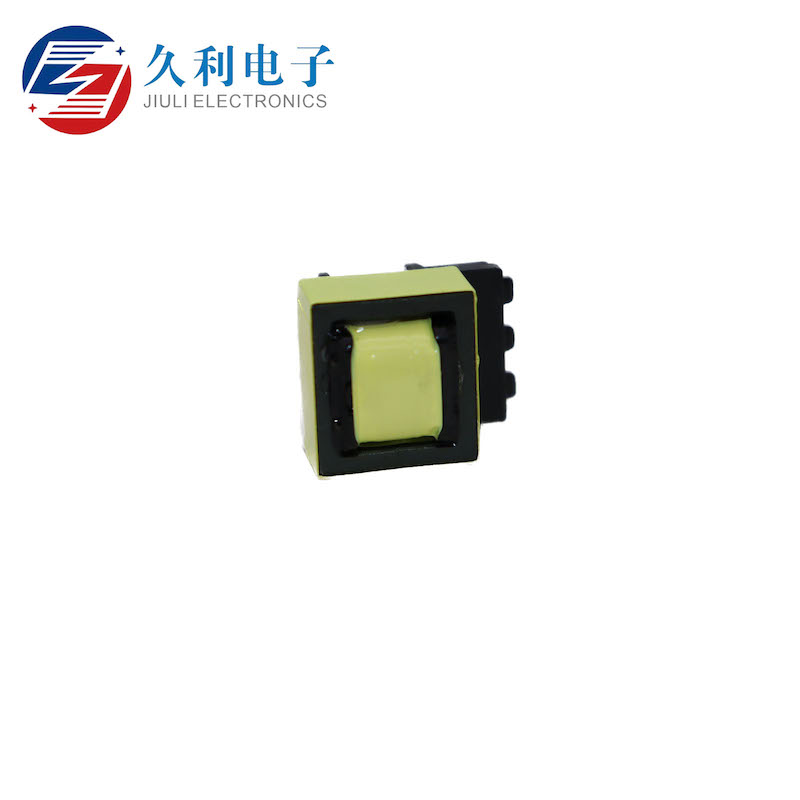

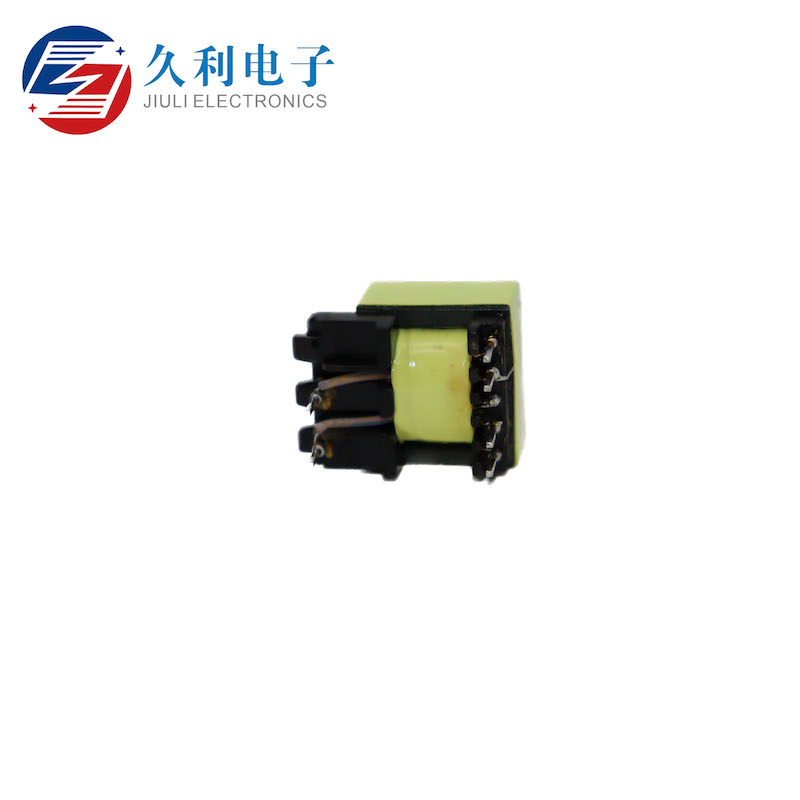

To address this industry predicament, we have launched the High Quality Switching Power Transformer series, which innovatively integrates topology optimization and new composite material technology. This solution significantly improves the local overheating phenomenon commonly found in Switching Power Supply Series Transformers through a unique magnetic path design. Its modular structure can more flexibly adapt to various space-constrained installation scenarios.

Product Core Value

Perfectly balancing power capacity and volume ratio

Suitable for precision systems such as new energy vehicle charging piles

Verified through rigorous high and low temperature cycling impact tests

Three revolutionary highlights

① Three-dimensional heat dissipation channel design

② Corrosion-resistant alloy framework structure

③ Adaptive electromagnetic shielding layer

Maintenance Suggestions

It is recommended to install a dust-proof screen when using in dusty environments

Feedback from multiple industrial fields on High Frequency Transformer Review shows that this series of products maintains the characteristics of "Small and Good Transformer" while completely solving the problem of thermal runaway in high-frequency conditions. Its revolutionary thermal management architecture is laying a stable and reliable energy transmission channel for high-end application scenarios such as 5G base station power supplies and medical imaging equipment.
