What are the characteristics of common-mode inductors?



Common-mode inductors are a special type of inductor that is widely used in electronic circuits, mainly for suppressing common-mode interference. Its unique structure and working principle make it play an important role in electronic equipment.

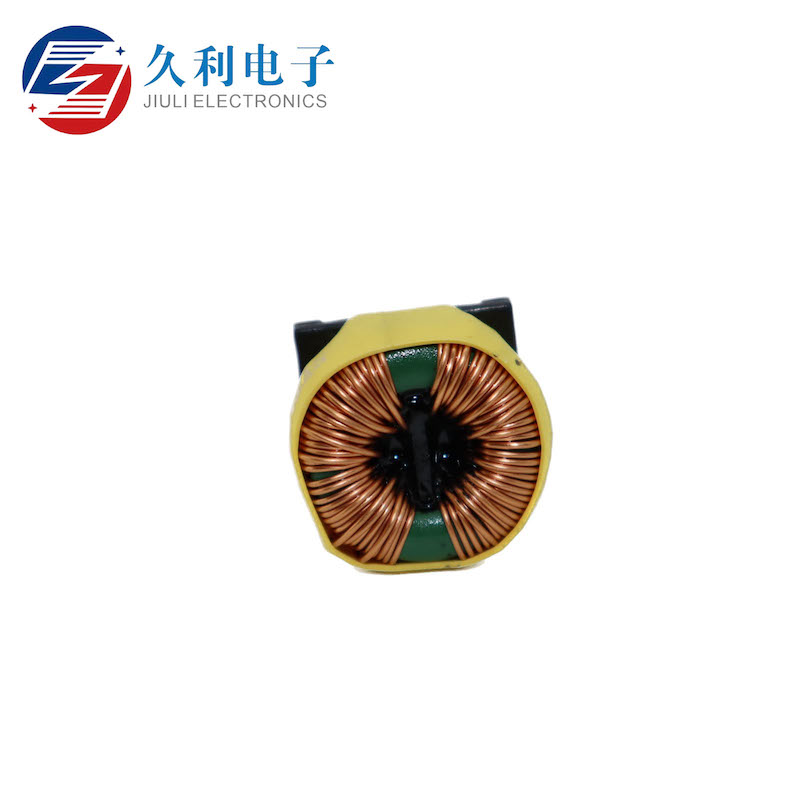

Its structural feature is that common-mode inductors are usually composed of two coils of the same size and the same number of turns symmetrically wound on the same ferrite toroidal core to form a four-terminal device. This structure makes common-mode inductors perform well in suppressing common-mode noise while having minimal impact on differential-mode signals.

Its main characteristics are:

- High initial permeability: The core material of common-mode inductors usually has high initial permeability, which enables them to provide higher inductive reactance in the low frequency band and effectively suppress common-mode noise.

- High saturation magnetic induction intensity: Under high current conditions, common-mode inductors are not easy to saturate, which ensures their stability in high-power applications.

- Temperature stability: Common-mode inductors have good temperature characteristics and can maintain stable performance over a wide temperature range.

- Leakage inductance characteristics: Due to the limitations of the winding process, common-mode inductors have a certain leakage inductance, which can be used to suppress differential-mode interference.



Common-mode inductors play an important role in electronic devices due to their unique structure and efficient working principle, and are one of the indispensable components in modern electronic circuits.
